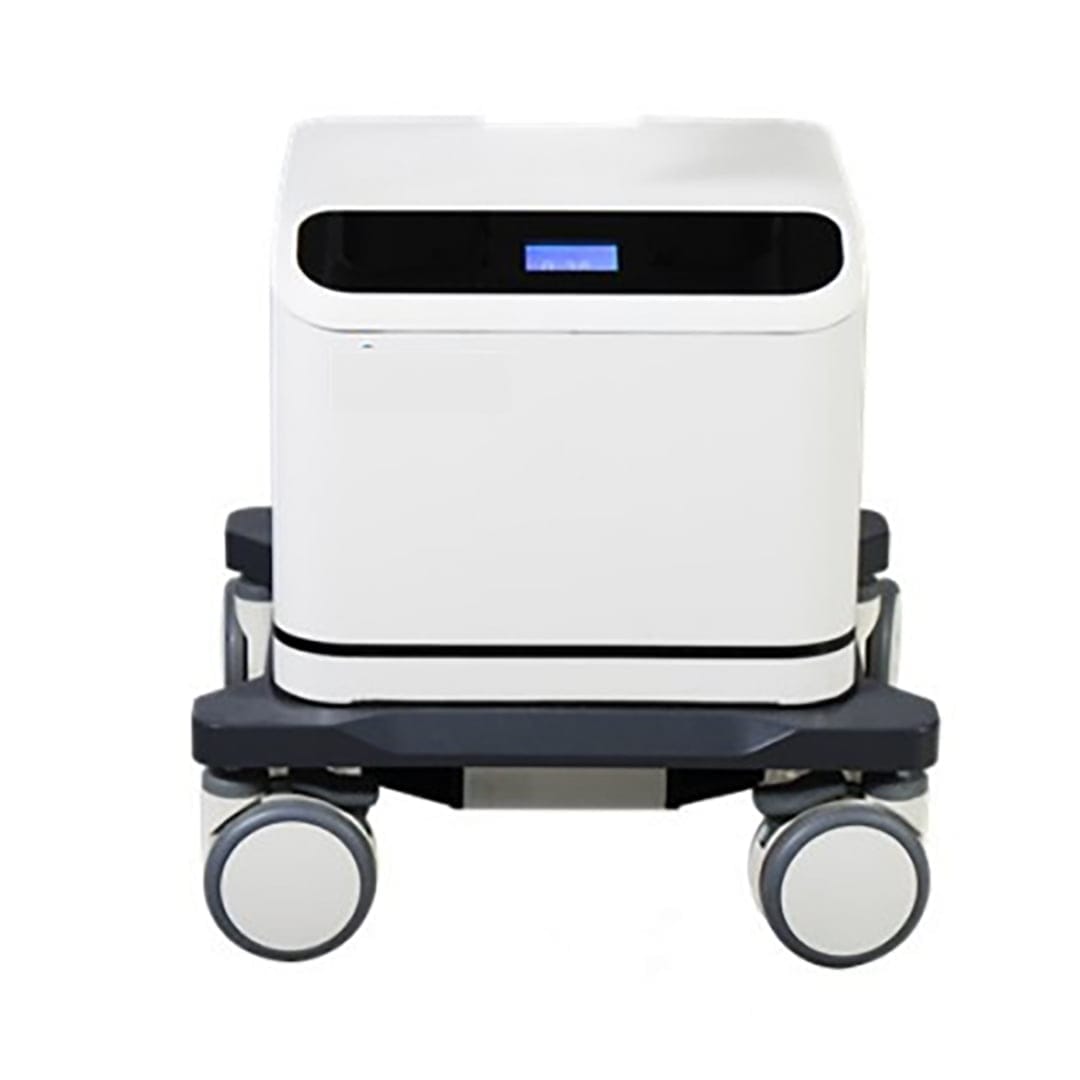

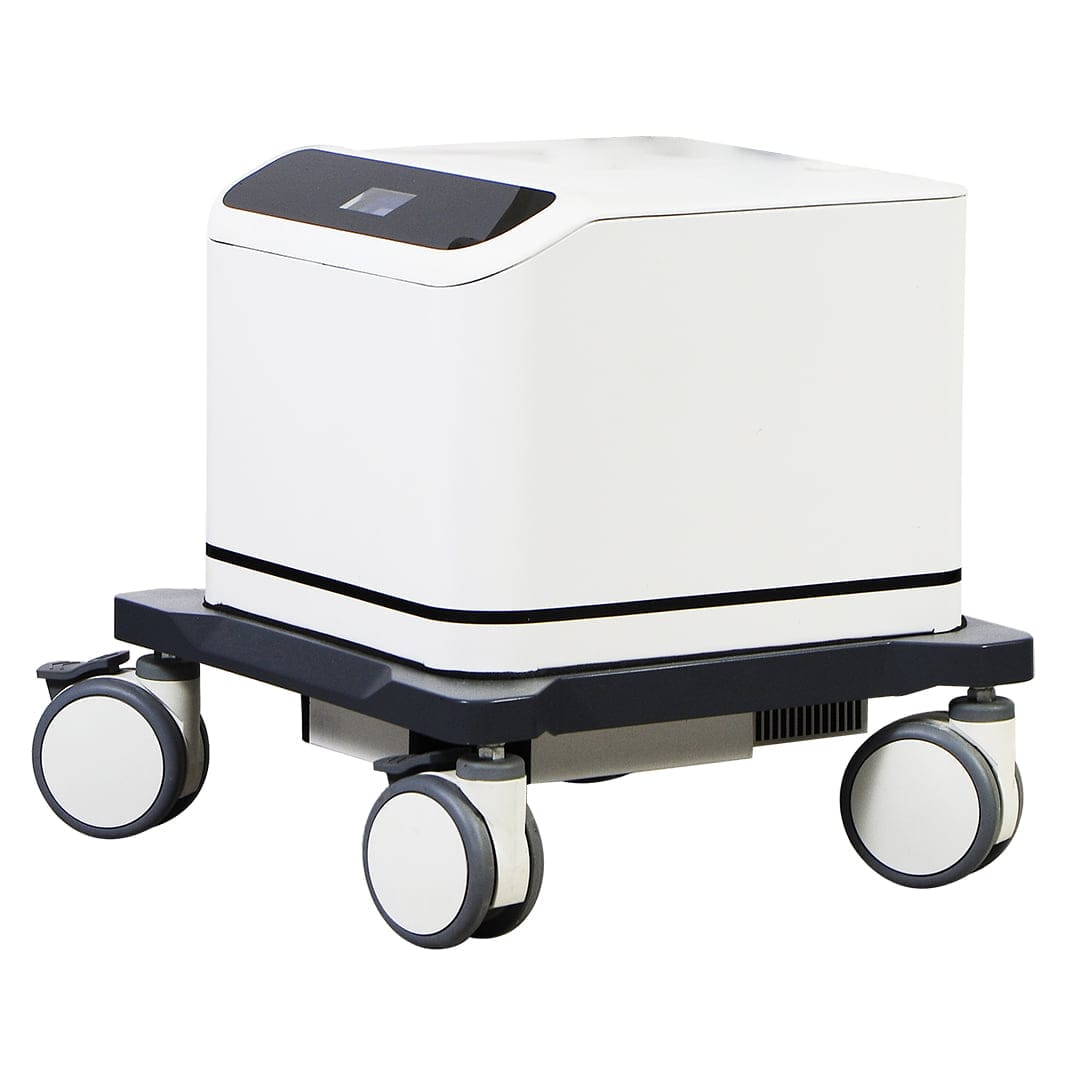

NLF-100D
NLF-100D
NLF-100D
| TECHNICAL SPECIFICATION | Value |
|---|---|
| Working environment | |
| Ambient temperature | 5 ℃～ 40 ℃ |
| Relative humidity | ≤80 % |
| Atmospheric pressure | 860 hPa～1060 hPa |
| Storage and transportation environment | |
| Ambient temperature | －10 ℃～＋40 ℃ |
| Relative humidity | ≤90 % |
| Atmospheric pressure | 860 hPa～1060 hPa |
| Power supply | |
| Voltage | 220 V±22 V～ |
| Frequency | 50 HZ±1 HZ |
| Input power | NLF-100 A/C 675 VA |
| NLF-100 B/D/E 500 VA | |
| Fuse | T10AH 250V |
| Technical specification | |
| Rated output pressure | NLF-100 A/B/C/D 0.35 MPa±0.05 MPa |
| NLF-100 E 0.2MPa±0.05 MPa | |
| Continuous output flow | NLF-100 A/C 0.35 MPa ≥45 L/min |
| NLF-100 B/D 0.35 MPa ≥25 L/min | |
| NLF-100 E 0.2MPa ≥25 L/min | |
| Peak flow | NLF-100 A/B/C/D≥120 L/min |
| NLF-100 E ≥60 L/min | |
| Dew point temperature | （atmospheric pressure at 860 hPa～1060 hPa） |
| NLF-100 A/B ＜-10 ℃ | |
| NLF-100C/D/E＜indoor temperature, minimum 5℃ | |
| Alarm for high heat | There is a sound alarm and there is a information |
| display on the screen when the compressed pump | |
| temperature is over 85 ℃ ± 10 ℃ | |
| Noise | ≤50 dB(A) |
